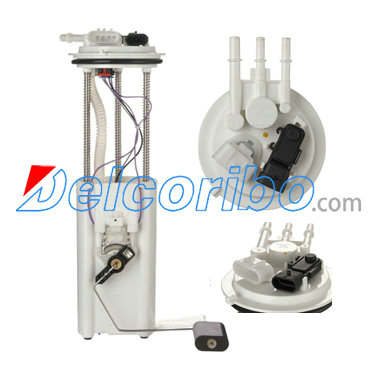

CHEVROLET 19179615, 25163489, 25320513, P302M, 9535018 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.9
Max Pressure Range (Psi): 123.25
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 1
Resistance Full (Ohms): 90
Rheostat Range (Ohms): 1-90
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 79.75
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

CHEVROLET 19179615, 25163489, 25320513, P302M, 9535018,

SPECTRA PREMIUM SP6013M
DENSO 9530006
BOSCH 67334, F 00E 190 074, F00E190074
DELPHI FG0030
AIRTEX E3925M
BRUTE POWER 1010069
CARTER P74716M
ACDELCO MU1735

CHEVROLET BLAZER 1996
GMC JIMMY 1996
OLDSMOBILE BRAVADA 1996
