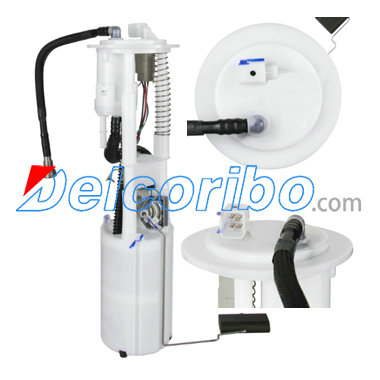

CADILLAC 10337590, 10339515, 10339526, 19133430, 19133432, 19133433, 19133435, 19133439 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 16.3
Max Pressure Range (Psi): 110
Max Free Flow (Gph): 80
Resistance Empty (Ohms): 250
Resistance Full (Ohms): 40
Rheostat Range (Ohms): 250-40
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 70
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

10337590, 10339515, 10339526, 19133430, 19133432, 19133433, 19133435, 19133439, 19133441, 19149081, 19149082, 19149227, 19149330, 19149331, 19149685, 19149687, 19149689, 19149828, 19207959, 19354670, 19417897, 88967315, 19301842, 19354666, 19417895,

SPECTRA PREMIUM SP6094M

CADILLAC XLR 2007-2009
CHEVROLET CORVETTE 2007-2013
