CADILLAC 10337590, 19133430, 19149227, 19149228, 19301842, 19354666, 88967318, 19149081 Electric Fuel Pump Assembly

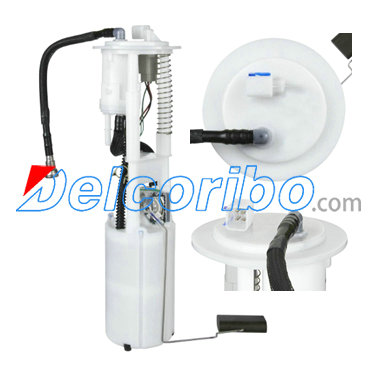

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 16.3
Max Pressure Range (Psi): 110
Max Free Flow (Gph): 80
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 70
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

10337590, 19133430, 19149227, 19149228, 19301842, 19354666, 88967318, 19149081, 19301843, 10339526, 19133432, 19133439, 19149689, 19301844, 19302042, 19354664, 19354672, 19354676, 19354678, 19417894, 88967315, 88967316,

SPECTRA PREMIUM SP6111M
DENSO 9533081
BOSCH 66079
DELPHI FG1091

CADILLAC XLR 2004-2006
CHEVROLET CORVETTE 2003-2006
