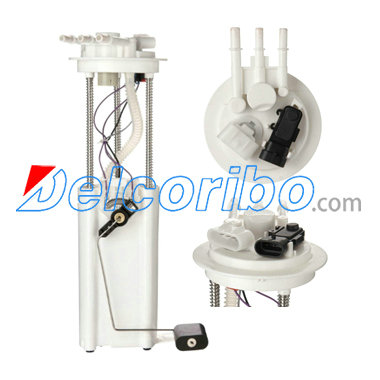

CHEVROLET 19180092, 25320538, 25344820, 88965573, P1504M Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 14.1
Max Pressure Range (Psi) 130.5
Max Free Flow (Gph) 57.7
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48.6
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

19180092, 25320538, 25344820, 88965573, P1504M, 19180093, 25347149, 88965574, 19331251, 25378227, 28108169,

SPECTRA PREMIUM SP61065M
BOSCH 67465
DELPHI FG0288
DELPHI FG0127
CARTER P74846M
AIRTEX E3506M
BRUTE POWER 1010009
ACDELCO MU1775
BOSCH F 00E 191 964 F00E191964

CHEVROLET ASTRO 2000-2005
GMC SAFARI 2000-2005
