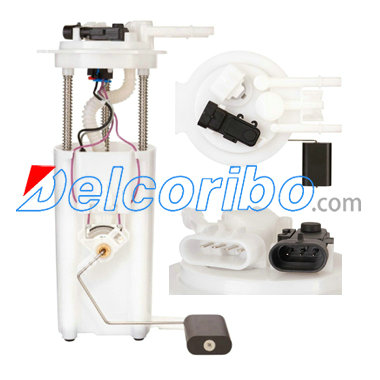

CHEVROLET 19180124, 25329424, 25344945, 25329396, 89060654, 19209835, 19331296, 19369975 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 11.5
Max Pressure Range (Psi) 130.5
Max Free Flow (Gph) 57.7
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48.6
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

19180124, 25329424, 25344945, 25329396, 89060654, 19209835, 19331296, 19369975,

SPECTRA PREMIUM SP61076M
DENSO 9535098
DELPHI FG0261
AIRTEX E3539M
DORMAN 2630374
CARTER P74988M
ACDELCO MU1797

CHEVROLET VENTURE 1998-2005
OLDSMOBILE SILHOUETTE 1998-1999
PONTIAC MONTANA 2001-2005
