CHEVROLET 19179480, 19303375, 25345022, P1546M, 15070525, 25340235 Electric Fuel Pump Assembly

CHEVROLET 19179480, 19303375, 25345022, P1546M, 15070525, 25340235 Electric Fuel Pump Assembly

CHEVROLET 19179480, 19303375, 25345022, P1546M, 15070525, 25340235 Electric Fuel Pump Assembly

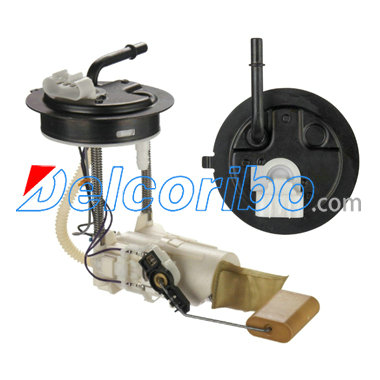

FPM1658 CHEVROLET Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 7.1
Max Pressure Range (Psi) 26
Max Free Flow (Gph) 51.6
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 42.5
Min Pressure Range (Psi) 17
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
19179480, 19303375, 25345022, P1546M, 15070525, 25340235,
SPECTRA PREMIUM SP61087M
DENSO 9535120
DELPHI FG0352
AIRTEX E3553M
ACDELCO MU1805
CHEVROLET AVALANCHE 2500 2002-2003
CHEVROLET SUBURBAN 2500 2002-2003
GMC YUKON XL 2500 2002-2003
