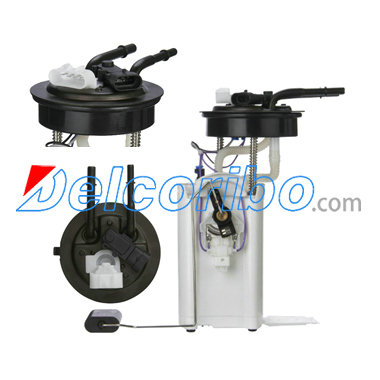

CADILLAC 19180099, 25340156, 25345024, 19331260, 9535105 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 10.3
Max Pressure Range (Psi) 130.5
Max Free Flow (Gph) 57.7
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 48.6
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

19180099, 25340156, 25345024, 19331260, 9535105,

SPECTRA PREMIUM SP61088M
DENSO 9530035
DELPHI FG0273
AIRTEX E3556M
BRUTE POWER 1010011
CARTER P75023M
DORMAN 2630376
ACDELCO MU1738
BOSCH F 00E 191 328 F00E191328

CADILLAC ESCALADE 2002-2003
CHEVROLET AVALANCHE 1500 2002-2003
CHEVROLET SUBURBAN 1500 2000-2003
GMC YUKON XL 1500 2002-2003
