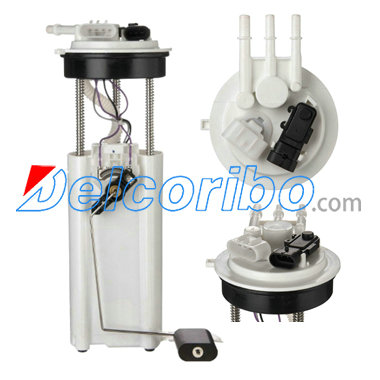

CHEVROLET 19179589, 25347145, 19179590, 25359058, 19331248, 19331247, 19369892 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 12
Max Pressure Range (Psi) 130.5
Max Free Flow (Gph) 57.7
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48.6
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Round
Connector Shape Square
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

19179589, 25347145, P1570M, 19179590, 25359058, 19331248, 19331247, 19369892,

SPECTRA PREMIUM SP61099M
DELPHI FG0286
AIRTEX E3569M
CARTER P74841M
BRUTE POWER 1010145, 1010099
ACDELCO MU1760

CHEVROLET BLAZER 2003-2005
GMC JIMMY 2003-2005
