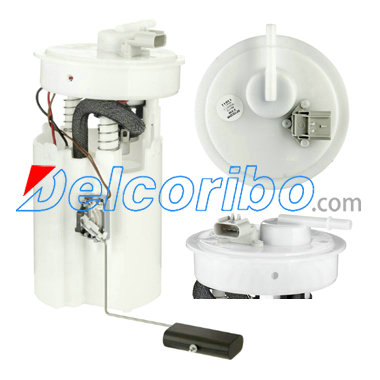

CHRYSLER 5086650AA, 5086650AB, 5086650AC, RL086650AC, 5017204AA, 5017204AB Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.5
Max Pressure Range (Psi): 61
Max Free Flow (Gph): 56
Resistance Empty (Ohms): 70
Resistance Full (Ohms): 1050
Rheostat Range (Ohms): 70-1050
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

5086650AA, 5086650AB, 5086650AC, RL086650AC, 5017204AA, 5017204AB, 5017204AC, 5017204AE, RL017204AE, 05017204AA, 05017204AB, 05017204AC, 05017204AE,

SPECTRA PREMIUM SP7032M
DENSO 9533046
DENSO 9533032
BOSCH 67673
DELPHI FG0373
CARTER P76096M

AIRTEX E7143M, E7191M
BOSCH F 00E 192 198 F00E192198

CHRYSLER PT CRUISER 2003-2004
