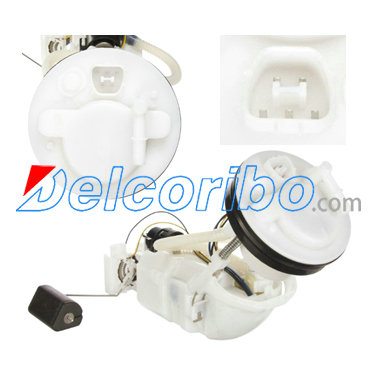

HONDA 17045SHJA30, 17045SHJA51, 17052SHJA00, 17052SHJA50 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 7.3
Max Pressure Range (Psi): 60.9
Max Free Flow (Gph): 63.3
Resistance Empty (Ohms): 780
Resistance Full (Ohms): 20
Rheostat Range (Ohms): 780-20
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52
Min Pressure Range (Psi): 55.1
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

17045SHJA30, 17045SHJA51, 17052SHJA00, 17052SHJA50, FG1155,

SPECTRA PREMIUM SP8038M
DELPHI FG1456
CARTER P76415M

HONDA ODYSSEY 2005-2010
