HONDA 17045T5RA00, 17045-T5R-A00, 17052T5RA00, 17052-T5R-A00 Electric Fuel Pump Assembly

HONDA 17045T5RA00, 17045-T5R-A00, 17052T5RA00, 17052-T5R-A00 Electric Fuel Pump Assembly

HONDA 17045T5RA00, 17045-T5R-A00, 17052T5RA00, 17052-T5R-A00 Electric Fuel Pump Assembly

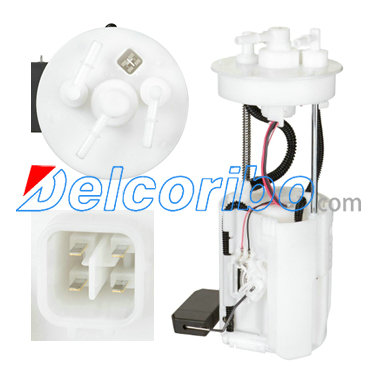

FPM1983 HONDA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.8
Max Pressure Range (Psi): 61
Max Free Flow (Gph): 43
Resistance Empty (Ohms): 780
Resistance Full (Ohms): 20
Rheostat Range (Ohms): 780-20
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 34
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
17045T5RA00, 17052T5RA00,
SPECTRA PREMIUM SP8067M
DELPHI FG1975
HONDA FIT 2015-2019
