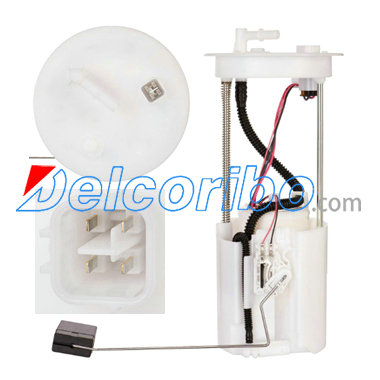

ACURA 17045TZ5A00, 17045TZ5A10, 17047TZ5A00, 17047TZ5A01, 17047TZ5A10, 17052T0C000 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.3
Max Pressure Range (Psi): 57
Max Free Flow (Gph): 45
Resistance Empty (Ohms): 780
Resistance Full (Ohms): 20
Rheostat Range (Ohms): 780-20
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 35
Min Pressure Range (Psi): 47
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

17045TZ5A00, 17045TZ5A10, 17047TZ5A00, 17047TZ5A01, 17047TZ5A10, 17052T0C000,

SPECTRA PREMIUM SP8408M
DELPHI FG1680
CARTER P77052M

ACURA MDX 2014-2019
HONDA PILOT 2016-2019
HONDA RIDGELINE 2017-2019
