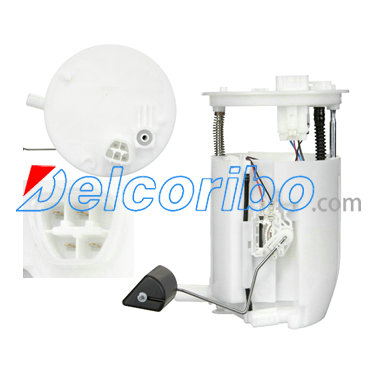

TOYOTA 770200T010, 8332009170, 8332009171, 833200T010 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8.7
Max Pressure Range (Psi): 50
Max Free Flow (Gph): 58
Resistance Empty (Ohms): 185
Resistance Full (Ohms): 8
Rheostat Range (Ohms): 185-8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 45
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

770200T010, 8332009170, 8332009171, 833200T010,

SPECTRA PREMIUM SP8940M
DELPHI FG1765
AIRTEX E8940M

TOYOTA VENZA 2009-2016
