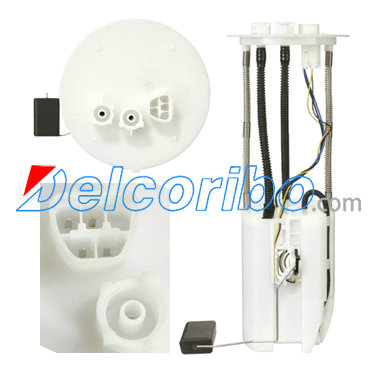

TOYOTA 770200C060, 77020-0C060, 770200C061, 77020-0C061, 232170F020, 23217-0F020 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 15.2
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 51
Resistance Empty (Ohms): 110
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 110-4
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 41.7
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

770200C060, 770200C061, 232170F020,

SPECTRA PREMIUM SP9000M
DELPHI FG0921
AIRTEX E8694M
CARTER P76330M

TOYOTA SEQUOIA 2005-2007
TOYOTA TUNDRA 2005-2006
