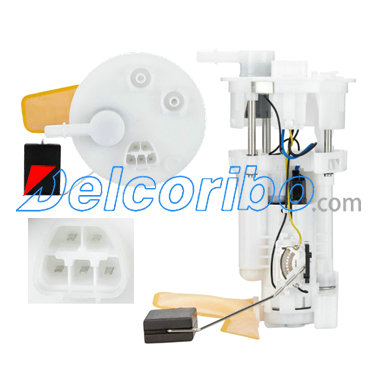

SCION 2321721030, 2321903010, 2322121030, 2322121060, 232490A020, 2328022010, 233000A020, 7702452030, 7716933020 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8.7
Max Pressure Range (Psi): 50
Max Free Flow (Gph): 35.6
Resistance Empty (Ohms): 107
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 107-4
Inlet Quantity: 1
Inlet Type: Push In
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 26.3
Min Pressure Range (Psi): 44
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

2321721030, 2321903010, 2322121030, 2322121060, 232490A020, 2328022010, 233000A020, 7702452030, 7716933020, 7717547010, 7724106020, 7778552020, 8332052070, 9015950343, 90159A0022,

SPECTRA PREMIUM SP9030M

SCION XA 2004-2005
SCION XB 2004-2005
TOYOTA ECHO 2001-2005
