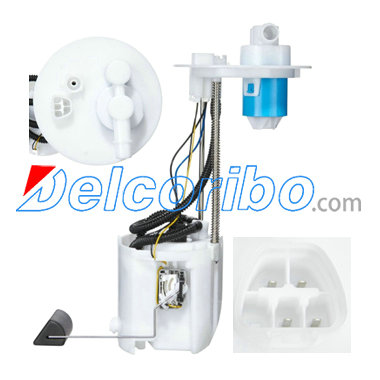

SCION 2322021132, 2322021210, 2328021010, 7702452130, 7702452180, 7713152071 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.9
Max Pressure Range (Psi): 50
Max Free Flow (Gph): 45
Resistance Empty (Ohms): 410
Resistance Full (Ohms): 15
Rheostat Range (Ohms): 410-15
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 36
Min Pressure Range (Psi): 44
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

2322021132, 2322021210, 2328021010, 7702452130, 7702452180, 7713152071, 7716952030, 7778552060, 8332052261,

SPECTRA PREMIUM SP9031M

SCION XD 2008-2014
TOYOTA YARIS 2006-2018
