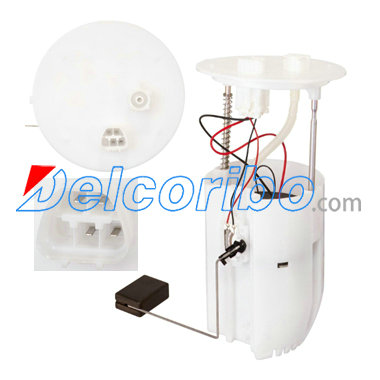

TOYOTA 770200E060, 77020-0E060, 770200E012, 77020-0E012 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.14
Max Pressure Range (Psi): 49.3
Max Free Flow (Gph): 55.7
Resistance Empty (Ohms): 110
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 110-4
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46.4
Min Pressure Range (Psi): 43.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

770200E060, 770200E012,

SPECTRA PREMIUM SP9176M
DELPHI FG0922
AIRTEX E9011M

TOYOTA HIGHLANDER 2010-2013
