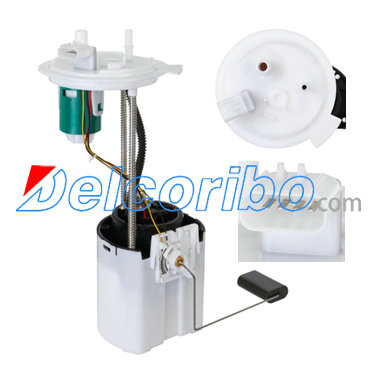

AIRTEX E2585M, FORD CL3Z9H307B, DL3Z9H307A, DL3Z-9H307-A Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 14
Max Pressure Range (Psi) 73
Max Free Flow (Gph) 69
Resistance Empty (Ohms) 180
Resistance Full (Ohms) 10
Rheostat Range (Ohms) 180-10
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 59
Min Pressure Range (Psi) 67
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Rectangular
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

CL3Z9H307B, DL3Z9H307A, DL3Z 9H307 A,

SPECTRA PREMIUM SP2472M
AIRTEX E2585M

FORD F-150 2012-2014
