AIRTEX E3825M, PONTIAC 19185091, 19185097, 7702002270 Electric Fuel Pump Assembly

AIRTEX E3825M, PONTIAC 19185091, 19185097, 7702002270 Electric Fuel Pump Assembly

AIRTEX E3825M, PONTIAC 19185091, 19185097, 7702002270 Electric Fuel Pump Assembly

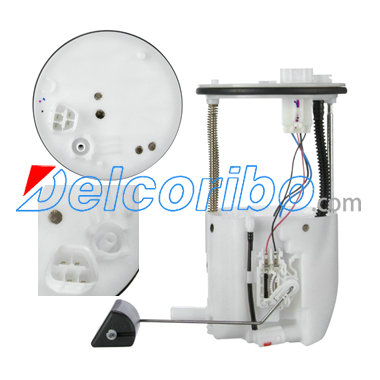

FPM2097 PONTIAC Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 9.3
Max Pressure Range (Psi) 49.3
Max Free Flow (Gph) 57.27
Resistance Empty (Ohms) 243
Resistance Full (Ohms) 7
Rheostat Range (Ohms) 243-7
Outlet Quantity 1
Outlet Type Push In
Outlet Diameter (IN) 5/16
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 27.27
Min Pressure Range (Psi) 49.3
Strainer Included Yes
Pin Count 5
Pin Shape Flat
Connector Shape Trapeze
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
19185091, 19185097, 7702002270,
SPECTRA PREMIUM SP9166M
AIRTEX E3825M
CARTER P76689M
ACDELCO MU1719
PONTIAC VIBE 2009-2010
TOYOTA MATRIX 2009-2013
