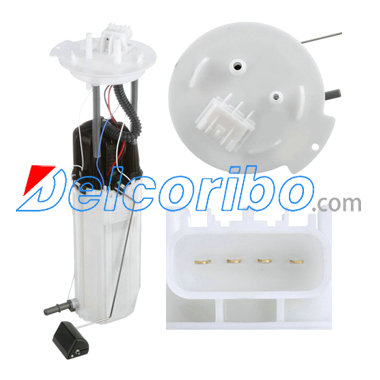

CHEVROLET 22966044, 13510983, 22966043, 23190871, 23336547, 23475180, 84240344 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Vapor Pressure Sensor No
System Pressure 55 psi
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

22966044, 13510983, 22966043, 23190871, 23336547, 23475180, 84240344, 84240352,

AIRTEX E4101M
DELPHI FG2035
ACDELCO M100252

CHEVROLET CORVETTE 2014-2018
