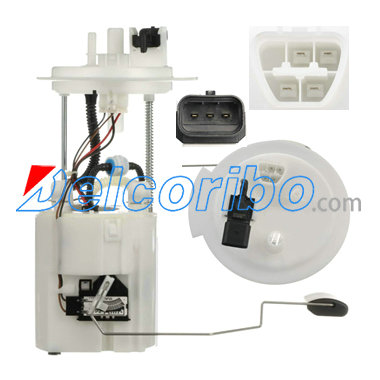

KIA 311103W810, 31110-3W810, 311103W830, 31110 3W830, 313803Q550, 31380-3Q550 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Fuel Level Sender Assembly Included Yes
System Pressure 72 psi
Vapor Pressure Sensor Yes
Outlet Outside Diameter (in) 0.313
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure (PS) 78.0
Terminal Type Blade
Gasket or Seal Included No
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 200.0
Resistance Ohms Full 8.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Average Flow Rating (GP) 31
Pump Type Electric

311103W810, 311103W830, 313803Q550,

DELPHI FG2211

KIA SPORTAGE 2012-2015
