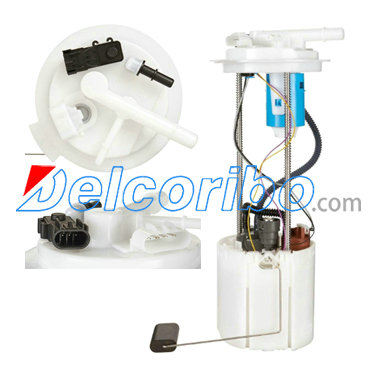

CHEVROLET 19259484, 19301231 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 15.6
Max Pressure Range (Psi) 87
Max Free Flow (Gph) 85
Resistance Empty (Ohms) 250
Resistance Full (Ohms) 40
Rheostat Range (Ohms) 250-40
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Flex
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 75
Min Pressure Range (Psi) 81
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

19259484, 19301231,

SPECTRA PREMIUM SP6712M
DELPHI FG2176
ACDELCO M100065

CHEVROLET EXPRESS 1500 2010-2014
GMC SAVANA 1500 2010-2014
