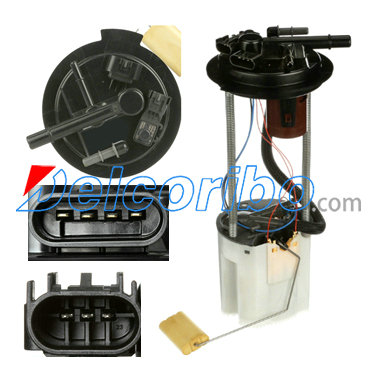

CHEVROLET 19168403, 19181054, 19368790 Electric Fuel Pump Assembly

Fuel Type Flex
System Pressure 58 PSI
Vapor Pressure Sensor Yes
Fuel Level Sender Assembly Included Yes
Package Contents Fuel Pump Module Assembly w/Float Arm, Seals, Instruction Sheet
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

19168403, 19181054, 19368790,

DELPHI FG2142
ACDELCO M10127

CHEVROLET EXPRESS 1500 2008
GMC SAVANA 1500 2008
