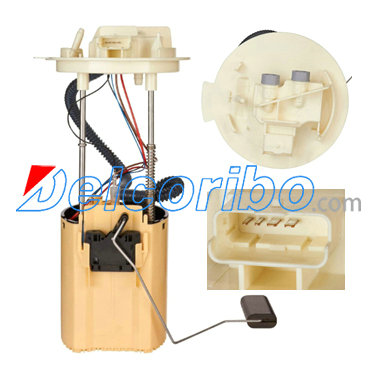

FORD CK4Z9A299A, CK4Z-9A299-A, CK4Z9H307C, CK4Z-9H307-C Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included No
Height (in) 12.75
Max Pressure Range (Psi) 14
Max Free Flow (Gph) 35
Resistance Empty (Ohms) 710
Resistance Full (Ohms) 50
Rheostat Range (Ohms) 710-50
Outlet Quantity 1
Outlet Type Push In
Outlet Diameter (IN) 1/2
Compatible Fuels Diesel
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 25
Min Pressure Range (Psi) 7
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Rectangular
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

CK4Z9A299A, CK4Z9H307C, CK4Z 9H307 C,

SPECTRA PREMIUM SP2600M
DELPHI FG2094
MOTORCRAFT PFS1061

FORD TRANSIT 150 2015-2017
FORD TRANSIT 250 2015-2017
FORD TRANSIT 350 2015-2017
