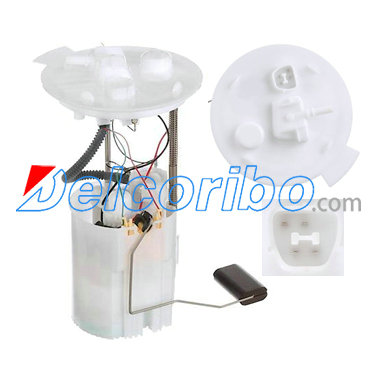

DELPHI FG2072, FORD FV6Z9H307H, FV6Z-9H307-H Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor No
Outlet Outside Diameter (in) 0.313
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 464.0
Resistance Ohms Full 51.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

FV6Z9H307H,

DELPHI FG2072
MOTORCRAFT PFS1093

FORD TRANSIT CONNECT 2016-2018
