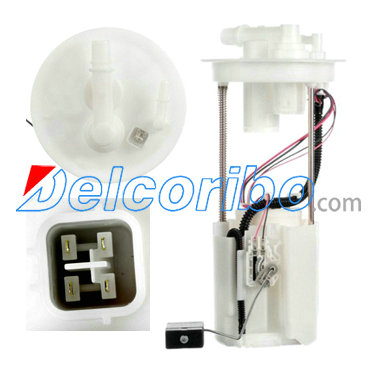

ACURA 17045TR0L70, 17045-TR0-L70, 17047TR0L00, 17047-TR0-L00, 17052TR0L70, 17052-TR0-L70 Electric Fuel Pump Assembly

System Pressure 44 psi
Vapor Pressure Sensor No
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure (PS) 123.0
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included Yes
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 780.0
Resistance Ohms Full 20.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

17045TR0L70, 17047TR0L00, 17052TR0L70,

DELPHI FG1886

ACURA ILX 2013-2014
HONDA CIVIC 2012-2013
