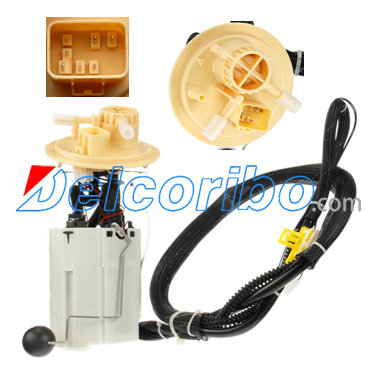

VOLVO 307419940, 307617450, 307924490, 312611330, 312611370, 312618190 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor No
System Pressure 55 psi
Outlet Outside Diameter (in) 0.313
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included No
Maximum Pressure (PS) 106.0
Terminal Type Blade
Gasket or Seal Included No
Terminal Quantity 7
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 392.0
Resistance Ohms Full 12.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Average Flow Rating (GP) 49
Pump Type Electric

307419940, 307617450, 307924490, 312611330, 312611370, 312618190,

DELPHI FG1275

VOLVO S60 2005-2007
VOLVO S80 2005-2006
VOLVO V70 2005
VOLVO XC70 2005-2006
VOLVO XC90 2003-2014
