AIRTEX E4124M, CHEVROLET 15038363, 15205623, 15761872 Electric Fuel Pump Assembly

AIRTEX E4124M, CHEVROLET 15038363, 15205623, 15761872 Electric Fuel Pump Assembly

AIRTEX E4124M, CHEVROLET 15038363, 15205623, 15761872 Electric Fuel Pump Assembly

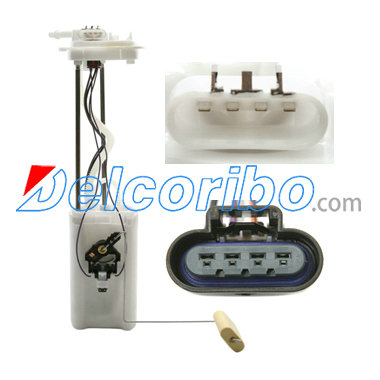

FPM2206 CHEVROLET Electric Fuel Pump Assembly
System Pressure 62 psi
Vapor Pressure Sensor No
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Splice Kit, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included No
Maximum Pressure (PS) 65.0
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 40.0
Resistance Ohms Full 250.0
Average Current Draw (A) 10
Average Flow Rating (GP) 24
Pump Type Electric
15038363, 15205623, 15761872,
DELPHI FG0316
CARTER P74897M
AIRTEX E4124M
ACDELCO MU1005
CHEVROLET SILVERADO 1500 2004
GMC SIERRA 1500 2004
