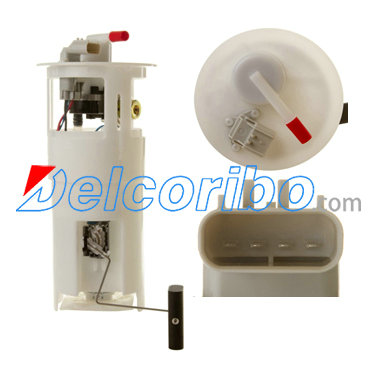

CHRYSLER 5003958AA, 5003958AB, 5003958AC, 5003958AD, 5003958AE Electric Fuel Pump Assembly

Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor No
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
System Pressure 49 psi
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure (PS) 73.0
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 1050.0
Resistance Ohms Full 60.0
Internal Or External Strainer External
Average Current Draw (A) 14
Average Flow Rating (GP) 23
Pump Type Electric

4581046, 5003958AA, 5003958AB, 5003958AC, 5003958AD, 5003958AE, 89032325,

DELPHI FG0232
BOSCH 67663
CARTER P74819M
DENSO 9533018
BRUTE POWER 1010171
BOSCH F 00E 190 688 F00E190688
AIRTEX E7137M

CHRYSLER 300M 1999
CHRYSLER CONCORDE 1998-1999
CHRYSLER INTREPID 1998-1999
CHRYSLER LHS 1999
DODGE INTREPID 1998-1999
