FORD E8TZ9H307C, E8TZ-9H307-C, E5TZ9H307K Electric Fuel Pump Assembly

FORD E8TZ9H307C, E8TZ-9H307-C, E5TZ9H307K Electric Fuel Pump Assembly

FORD E8TZ9H307C, E8TZ-9H307-C, E5TZ9H307K Electric Fuel Pump Assembly

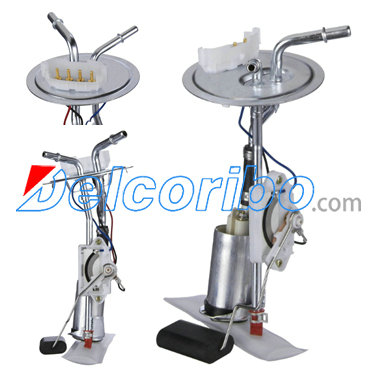

FPM2627  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 8.7
Max Free Flow (Gph): 42.3
Resistance Empty (Ohms): 70
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 70-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 31.7
Min Pressure Range (Psi): 4.4
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD E8TZ9H307C, E8TZ 9H307 C, E5TZ9H307K, E5TZ 9H307 K,
SPECTRA PREMIUM SP2023H
DELPHI HP10166
AIRTEX E2096S
CARTER P74549S
