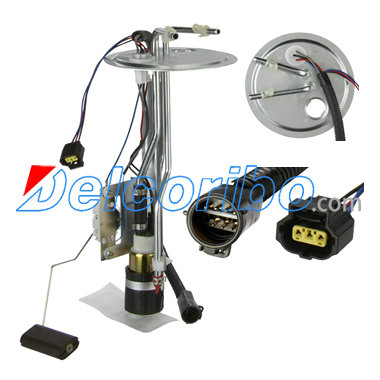

FORD XL1Z9H307DA, XL1Z9H307DB, XL1Z-9H307-DB, XL1Z9H307DC Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 14.5
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 59
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 161
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 7
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD XL1Z9H307DA, XL1Z 9H307 DA, XL1Z9H307DB, XL1Z 9H307 DB, XL1Z9H307DC, XL1Z 9H307 DC, P2525S,

SPECTRA PREMIUM SP2253H
AIRTEX E2253S
