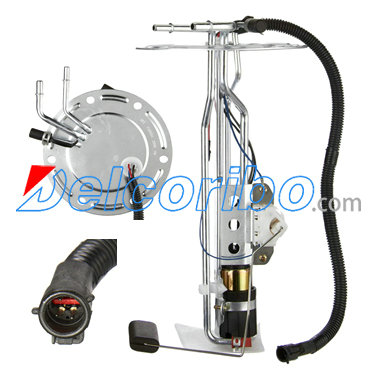

FORD 2C2Z9H307CA, 2C2Z9H307CB, 2C2Z9H307FA, 3C2Z9H307DA, 3C2Z9H307DB, F7UZ9A407EA Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 14.8
Max Pressure Range (Psi): 109
Max Free Flow (Gph): 44.9
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 34.3
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 2C2Z9H307CA, 2C2Z 9H307 CA, 2C2Z9H307CB, 2C2Z 9H307 CB, 2C2Z9H307FA, 2C2Z 9H307 FA, 3C2Z9H307DA, 3C2Z 9H307 DA, 3C2Z9H307DB, 3C2Z 9H307 DB, F7UZ9A407EA, F7UZ9H307EB, F7UZ 9H307 EB, F7UZ9H307EC, F7UZ 9H307 EC, SP2535H, XC2Z9H307CA, XC2Z 9H307 CA, YC2Z9H307CA, YC2Z 9H307 CA, 3C249H307DA, 3C24 9H307 DA, F7UU9H307DC, F7UU 9H307 DC, F7UZ9H307DC, F7UZ 9H307 DC, HP10075,

SPECTRA PREMIUM SP2224H
DELPHI HP10081
DELPHI HP10191
AIRTEX E2276S
AIRTEX E2239S
AIRTEX E2210S
