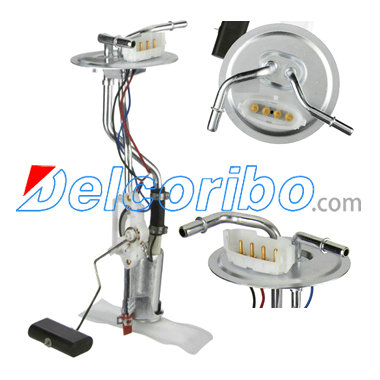

FORD E8TZ9H307B, E8TZ-9H307-B, E8TZ9H307BA, E5TZ9H307J, E5TZ-9H307-J Electric Fuel Pump Assembly

Description Fuel Pump And Sender Assembly
Gaskets Included Yes
Height (in) 13.2
Max Pressure Range (Psi) 8.7
Max Free Flow (Gph) 42.3
Resistance Empty (Ohms) 70
Resistance Full (Ohms) 10
Rheostat Range (Ohms) 70-10
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 31.7
Min Pressure Range (Psi) 4.4
Strainer Included Yes
Pin Count 4
Pin Shape Round
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Peripheral
Volts 12 vDC

FORD E8TZ9H307B, E8TZ 9H307 B, E8TZ9H307BA, E8TZ 9H307 BA, P377H, E5TZ9H307J, E5TZ 9H307 J,

SPECTRA PREMIUM SP377H
AIRTEX E2095S
DORMAN 692037
DELPHI HP10165
