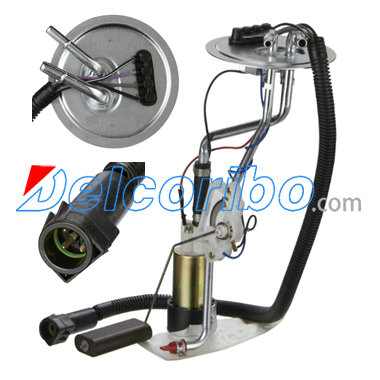

FORD F2TZ9H307L, F2TZ-9H307-L, F2TZ9H307LA, F2TZ-9H307-LA, F1TZ9H307B, F1TZ9H307A Electric Fuel Pump Assembly

Description Fuel Pump And Sender Assembly
Gaskets Included Yes
Height (in) 12.8
Max Pressure Range (Psi) 123
Max Free Flow (Gph) 47.6
Resistance Empty (Ohms) 10
Resistance Full (Ohms) 165
Rheostat Range (Ohms) 10-165
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 39.6
Min Pressure Range (Psi) 72
Strainer Included Yes
Pin Count 4
Pin Shape Round
Connector Shape Round
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

FORD F2TZ9H307L, F2TZ 9H307 L, F2TZ9H307LA, F2TZ 9H307 LA, P380H, F1TZ9H307B, F1TZ 9H307 B, F1TZ9H307A, F1TZ 9H307 A,

SPECTRA PREMIUM SP380H
DELPHI HP10142
AIRTEX E2144S
BRUTE POWER 1020025
DORMAN 692114
CARTER P74611S
