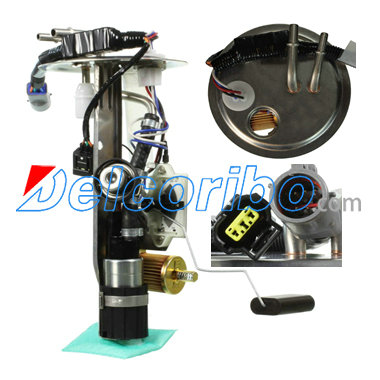

FORD XL5Z9H307CA, XL5Z9H307CB, XL5Z9H307CG, ZZR313350B, ZZR313350 Electric Fuel Pump Assembly

System Pressure 58 PSI
Fuel Type Flex
Package Contents Fuel Pump and Sender Assembly w/Float Arm, Seal, (2) Retainer Clips, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Maximum Pressure (PS) 80.0
Terminal Type PIN
Gasket or Seal Included Yes
Terminal Quantity 8
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 7.0
Resistance Ohms Full 140.0
Internal Or External Strainer External
Average Current Draw (A) 10
Average Flow Rating (GP) 34
Pump Type Electric

XL5Z9H307CA, XL5Z9H307CB, XL5Z 9H307 CB, XL5Z9H307CG, XL5Z 9H307 CG, ZZR313350B, ZZR3 13350 B, ZZR313350,

AIRTEX E2260S
CARTER P74889S
DELPHI HP10213
