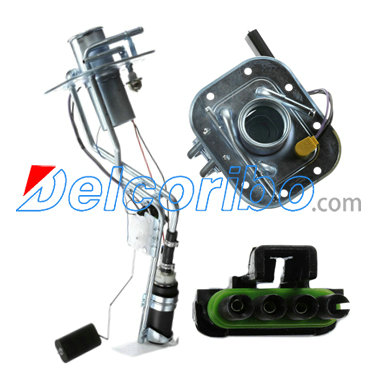

DELPHI HP10031, CHEVROLET 19179534, 25027510, 25116881 Electric Fuel Pump Assembly

System Pressure 44 psi
Package Contents Fuel Pump and Sender Assembly w/Float Arm, Seal, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Maximum Pressure (PS) 65.0
Terminal Type PIN
Gasket or Seal Included Yes
Terminal Quantity 4
Terminal Gender Female
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 1.0
Resistance Ohms Full 90.0
Internal Or External Strainer External
Average Current Draw (A) 6
Average Flow Rating (GP) 29
Pump Type Electric

19179534, 25027510, 25116881,

DELPHI HP10031
