AS-PL ARC9010 CASCO CRC14105AS ERA 215207 for Ford Alternator Rectifiers

Diodes: 8-40 Amp Press-Fit

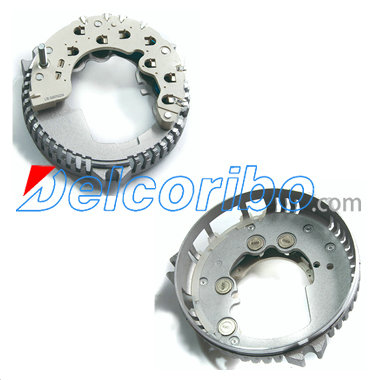

FR2013, (Ref# 31-207-1), Rectifier, For: Ford 3G Series 75-95A IR/IF, Alternators, Used On: (2005-91) Ford, Lincoln, Mazda, Mercury, Replaces: Ford F0CU-10A366-ACIP, F5AZ-10304-BA, F0CU10A366ACIP, F5AZ10304BA, F5AZ10304BA, F1TZ10346B , Unit Nos: 3G SERIES 70/95 A, 1021397, 1024864, 1031134, 1032652, 1057793, 1090424, 1104987, 6729337, 7066376, 7308195, Lester Nos: 7749, 7750, 7751, 7753, 7755, 7760, 7785, 7790, 7793, 7794, Dim: 133mm Heat Sink OD, Features: 40A/300V press-fit diodes, OE validated Crimp-weld diode terminations Heavy duty copper connections reduce, high-amp heat generation Pre-tinned terminals improves, solder-ability Drop-down stator connection improves, salvage rate for short-lead stators

AS-PL ARC9010
CASCO CRC14105AS
ERA 215207
LAUBER CQ1080298
MESSMER 215207
MOBILETRON RF-043 RF043
PowerMax 1116893, 81116893
SANDO SRC14105.0 SRC141050
WAIglobal FR2013, FR2013SP

Ford Passenger Car, Light Truck
