TRANSPO WAI FR601, FR6013, MOBILETRON RF-11 for Ford Alternator Rectifiers

Diodes: 50 Ampere

FR601 (31-216 )Rectifier
For: Ford 6G Series 105-110A* IR/IF Alternators
Replacing: TRANSPO/WAI FR601, FR6013, MOBILETRON RF-11
Unit Nos: Ford 98AB-10300-EB, 98AB10300EB, 98AZ-10346-EA, 98AZ10346EA, 98BB-10300-CC, 98BB10300CC, A8ZU-10300-AC, A8ZU10300AC, F8RZ-10346-CC, F8RZ10346CC, XS8Z-10346-BB, XS8Z10346BB; XS91-10300-BB, XS9110300BB, XS91-10300-BC, XS9110300BC, MOTORCRAFT GL419 GL431
Lester Nos: 8250, 8260
WAI Ref. Nos: 1-2207-01FD, 1-2349-01FD, 1220701FD, 1234901FD,
Features:
- OE validated, 40A/300V, 13mm press-fit diodes
- Crimp-weld diode terminations
- Heavy duty copper connections reduce high-amp heat generation
- Pre-tinned terminals improves solder-ability
- Drop-down stator connection improves salvage rate for short-lead statorsOR
Used On: (2004-98) Ford Contour, Focus; Mercury Cougar, Mystique 2.0L

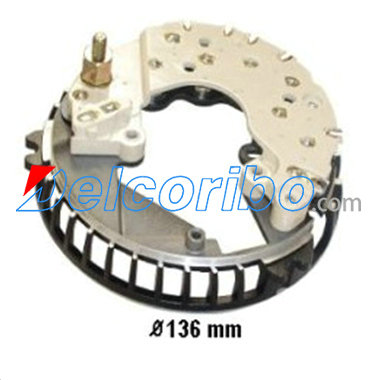

Dim: 136mm Heat Sink OD
Note: Similar to FR6003 except location of thru-bolt holes in relation to battery terminal.
*FR6013 is the early design 8-diode rectifier for 6G stators with 2-leads/phase and Y-connection.
For USE ON: (2004-98) Ford Contour, Focus; Mercury Cougar, Mystique 2.0L

AS-PL ARC9014
MESSMER 215211
ERA 215211
WAIglobal FR601

Ford Contour, Mercury Cougar, Mystique
