Valeo 545937, 592847, NF007, A546860A, 592937, 592846, 545940, 2545941, for RENAULT Alternator Rectifiers

Diodes: 6-35 Amp
Diameter OD: 107mm

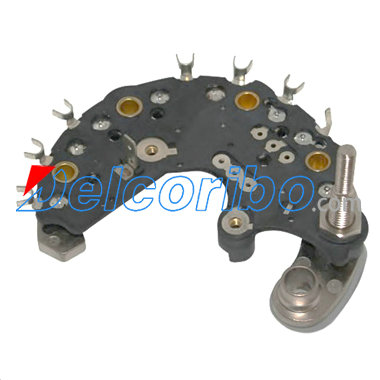

IPR847, Rectifier, For: Paris Rhone/Valeo 75-80A IR/IF, Alternators, Used On: Renault, Peugeot, Replaces: Valeo 545937, 592847, NF007, A546860A, 592937, 592846, 545940, 2545941, 2545938, Unit Nos: Paris Rhone/Valeo A11VI29, A11VI30, A11VI31, A11VI59, A11VI61, A13VI14, A13VI16, A13VI20, A13VI23, A13VI64, A13VI65, A13VI66, A13V104, 2541262, 2541307, 2541307C, 2541307D, 2541308, 2541310, 2541311, 2541325, 2541339, 2541339E, 2541339I, 2541340, 2541344, Dim: 107mm OD, M6 x 1.0 x 19mm, M8 x 1.25 x 19mm, Stepped Batt. Term., Note: With W-terminal., Similar to IPR846 except: , IPR846: 8-diode rectifier, IPR847: 6-diode rectifier, Features: 6-35A press-fit avalanche diodes

AS-PL ARC3012, ARC3013
CASCO CRC15104AS, CRC15112AS
ERA 215761
HITACHI 139694
LAUBER CQ1080375
MESSMER 215761
PowerMax 1111800, 81111800
SANDO SRC15104.0 SRC151040, SRC15112.0 SRC151120
VALEO 592846
WAIglobal IPR846

RENAULT RAPID Box (F40_, G40_) 1985/07 - 1998/11
RENAULT CLIO I (B/C57_, 5/357_) 1990/05 - 1998/09
RENAULT LAGUNA I (B56_, 556_) 1993/11 - 2001/03
RENAULT 19 I Chamade (L53_) 1988/01 - 1992/12
RENAULT 19 II (B/C53_) 1991/01 - 2001/06
RENAULT 19 II Chamade (L53_) 1992/04 - 2003/08
RENAULT MEGANE Scenic (JA0/1_) 1996/10 - 2001/12
RENAULT 19 II Box (S53_) 1992/03 - 1995/12
