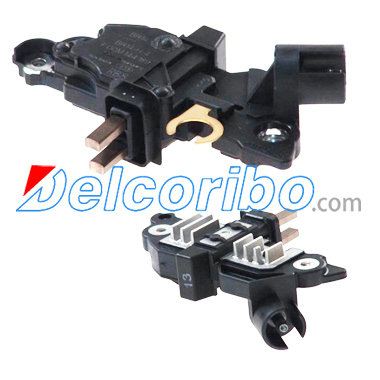

Bosch F-00M-145-243, F00M145674, F00M145270 for FIAT Voltage Regulator

B-Circuit
Voltage Set Point 14.5v
For 14mm OD slip ring
L-FR
Lamp activeted , With output
Soft start
Field Short Circuit Protection
Lamp Short Circuit Protection

CARGO 232193
TRANSPO IB252
Regulator / Brush Holder Assy.
12 Volt, B-Circuit, L Terminal, 14.5 Vset
For: Bosch IR/IF Alternators
Used On: (2005-00) Alfa-Romeo, CITROEN, Fiat, Lancia, Peugeot
(Europe)
Replaces: Bosch F-00M-145-243, F00M145674, F00M145270, F00M145252, F00M145232, F00M144189, F-00M-145-252, F-00M-145-270
Unit Nos: Bosch 0-124-515-087, 0124515090, 0124525206, 0124615002, 012461500C, 0124615027, 0-124-515-090, 0-124-615-002, 0-124-615-027
Dim: 14mm Dia. Slip Ring
M5 x 0.8 D+ Terminal
Note: Active lamp - with output
Features:
Short-circuit protection: lamp, field, choke drive

AS-PL ARE0052
BOSCH F 00M 145 270 F00M145270, F 00M 145 252 F00M145252, F 00M 145 243 F00M145243
DüRER ER25252
HELLA 5DR 009 728-181 5DR009728181
HERTH+BUSS ELPARTS 35000187
HITACHI 130619, 2500619
LAUBER CQ1010185
PowerMax 81111919
VEMO V42-77-0009 V42770009
WAIglobal IB252
ALANKO 700244
BERU GER077
ERA 215243
MESSMER 215243
MOBILETRON VR-B263 VRB263
STELLOX 06-71744-SX 0671744SX

2005-00 Alfa-Romeo , CITROEN , Fiat , Lancia , Peugeot
ALFA ROMEO 156 (932) 1997/09 - 2005/09
ALFA ROMEO 166 (936) 1998/09 - 2007/06
ALFA ROMEO 156 Sportwagon (932) 2000/01 - 2006/05
ALFA ROMEO 147 (937) 2000/11 - 2010/03
ALFA ROMEO GT (937) 2003/11 - 2010/09
CITROEN EVASION (22, U6) 1994/06 - 2002/07
CITROEN JUMPY (U6U) 1994/06 - /
CITROEN BERLINGO Box (M_) 1996/07 - /
CITROEN BERLINGO (MF) 1996/07 - /
CITROEN XSARA (N1) 1997/04 - 2005/04
CITROEN XSARA Break (N2) 1997/10 - 2010/03
CITROEN JUMPER Box (230L) 1994/02 - 2002/04
CITROEN XANTIA (X2) 1998/01 - 2003/04
CITROEN XANTIA Break (X2) 1998/01 - 2003/04
CITROEN XSARA Coupe (N0) 1998/01 - 2005/04
CITROEN XSARA PICASSO (N68) 1999/12 - /
CITROEN JUMPY Box (BS_, BT_, BY_, BZ_) 1994/06 - /
CITROEN JUMPY Platform/Chassis (BU_, BV_, BW_, BX_) 1999/10 - /
CITROEN C5 I (DC_) 2001/03 - 2004/08
CITROEN C5 I Break (DE_) 2001/06 - 2004/08
CITROEN JUMPER Bus (244, Z_) 2002/04 - /
CITROEN JUMPER Box (244) 2002/04 - /
CITROEN C8 (EA_, EB_) 2002/07 - /
CITROEN JUMPER Platform/Chassis (244) 2002/02 - /
FIAT ULYSSE (220) 1994/06 - 2002/08
FIAT SCUDO Combinato (220P) 1996/02 - 2006/12
FIAT SCUDO Box (220L) 1996/02 - 2006/12
FIAT DUCATO Bus (244, Z_) 2002/04 - /
FIAT DUCATO Box (244) 2002/04 - /
FIAT DUCATO Platform/Chassis (244) 2002/04 - /
LANCIA ZETA (220) 1995/05 - 2002/09
PEUGEOT 806 (221) 1994/06 - 2002/08
PEUGEOT 406 (8B) 1995/10 - 2005/01
PEUGEOT EXPERT (224) 1995/10 - /
PEUGEOT 406 Break (8E/F) 1996/10 - 2004/10
PEUGEOT BOXER Box (230L) 1994/03 - 2002/04
PEUGEOT PARTNER Box (5) 1996/04 - /
PEUGEOT PARTNER Combispace (5F) 1996/05 - /
PEUGEOT EXPERT Box (222) 1995/07 - /
PEUGEOT 406 Coupe (8C) 1997/03 - 2004/12
PEUGEOT 206 Hatchback (2A/C) 1998/08 - /
PEUGEOT 607 (9D, 9U) 2000/01 - /
PEUGEOT 307 (3A/C) 2000/08 - /
PEUGEOT 307 SW (3H) 2002/03 - /
PEUGEOT BOXER Bus (244, Z_) 2001/12 - /
PEUGEOT BOXER Box (244) 2001/12 - /
PEUGEOT 807 (E) 2002/06 - /
PEUGEOT 206 SW (2E/K) 2002/07 - /
PEUGEOT BOXER Platform/Chassis (244) 2001/12 - /
