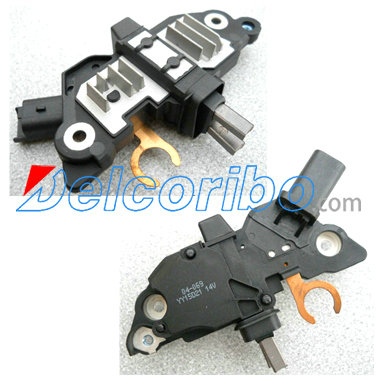

Bosch F00M145286, F-00M-145-286 Voltage Regulator for CITROEN

B-Circuit
Voltage Set Point 14.5v
For 14mm OD slip ring
Lamp activeted , With output
Soft start
Shorted lamp & field protection

333271
234770
IB286
Regulator / Brush Holder Assy.
12 Volt, B-Circuit, L-DMF(FR) Terminals
14.5 Vset, 2.5 sec. LRC
For: Bosch IR/IF Alternators
Used On: CITROEN, Peugeot (Europe)
Replaces: Bosch F00M145286, F-00M-145-286, F 00M 145 286, F00MA45233, F-00M-A45-233, F 00M A45 233, F00M145394, F-00M-145-394, F 00M 145 394, Fiat 77362556, PSA Peugeot CITROEN 5761C7, WOODAUTO, UNIPOINT YR-V33
Unit Nos: Bosch 0124525034, 0-124-525-034, 0 124 525 034, 0120525035, 0-120-525-035, 0 120 525 035, 0124525035, 0-124-525-035, 0 124 525 035
Note: Active lamp - with output
Features:
Soft start
Short-circuit protection of lamp, field and choke drive circuits

AS-PL ARE0057
BOSCH F 00M A45 233 F00MA45233, F 00M 145 394 F00M145394, F 00M 145 286 F00M145286
CASCO CRE10121AS, CRE10121GS
ERA 215247
HELLA 5DR 009 728-271 5DR009728271
HITACHI 130599, 2500599
MESSMER 215247
METZGER 2390024
MOBILETRON VR-B270 VRB270
PowerMax 1116071, 81116071
SANDO SRE10121.0 SRE101210, SRE10121.1 SRE101211
WAIglobal IB286
BERU GER099
LAUBER CQ1010529

CITROEN JUMPY (U6U) 1994/06 - /
CITROEN BERLINGO Box (M_) 1996/07 - /
CITROEN BERLINGO (MF) 1996/07 - /
CITROEN XSARA (N1) 1997/04 - 2005/04
CITROEN XSARA Break (N2) 1997/10 - 2010/03
CITROEN XSARA Coupe (N0) 1998/01 - 2005/04
CITROEN XSARA PICASSO (N68) 1999/12 - /
CITROEN JUMPY Box (BS_, BT_, BY_, BZ_) 1994/06 - /
CITROEN JUMPY Platform/Chassis (BU_, BV_, BW_, BX_) 1999/10 - /
CITROEN C5 I (DC_) 2001/03 - 2004/08
CITROEN C5 I Break (DE_) 2001/06 - 2004/08
CITROEN C3 I (FC_) 2002/02 - /
CITROEN JUMPER Bus (244, Z_) 2002/04 - /
CITROEN JUMPER Box (244) 2002/04 - /
CITROEN C8 (EA_, EB_) 2002/07 - /
CITROEN JUMPER Platform/Chassis (244) 2002/02 - /
CITROEN C3 Pluriel (HB_) 2003/05 - /
CITROEN C2 (JM_) 2003/09 - /
CITROEN C4 Coupe (LA_) 2004/11 - 2011/07
CITROEN C4 I (LC_) 2004/11 - 2011/07
CITROEN C5 II (RC_) 2004/08 - /
CITROEN C5 II Break (RE_) 2004/09 - /
CITROEN C1 (PM_, PN_) 2005/06 - /
CITROEN C4 Picasso I (UD_) 2007/02 - 2013/08
CITROEN JUMPY 2007/01 - /
CITROEN JUMPY Box 2007/01 - /
CITROEN C4 Grand Picasso I (UA_) 2006/10 - /
CITROEN C5 III (RD_) 2008/02 - /
CITROEN C5 III Break (TD_) 2008/02 - /
CITROEN BERLINGO (B9) 2008/04 - /
CITROEN BERLINGO Box (B9) 2008/04 - /
CITROEN C3 Picasso 2009/02 - /
CITROEN C3 II 2009/11 - /
CITROEN C4 Saloon 2006/07 - /
CITROEN C2 ENTERPRISE 2009/04 - /
CITROEN XSARA Box 2000/09 - 2005/03
CITROEN BERLINGO Platform/Chassis (B9) 2008/04 - /
FIAT DUCATO Bus (244, Z_) 2002/04 - /
FIAT DUCATO Box (244) 2002/04 - /
FIAT DUCATO Platform/Chassis (244) 2002/04 - /
FIAT ULYSSE (179AX) 2002/08 - 2011/06
FIAT SCUDO (272, 270_) 2007/01 - /
FIAT SCUDO Box (272, 270_) 2007/01 - /
FIAT SCUDO Platform/Chassis (272, 270_) 2007/01 - /
LANCIA PHEDRA (179) 2002/09 - 2010/11
PEUGEOT 406 (8B) 1995/10 - 2005/01
PEUGEOT EXPERT (224) 1995/10 - /
PEUGEOT 406 Break (8E/F) 1996/10 - 2004/10
PEUGEOT PARTNER Box (5) 1996/04 - /
PEUGEOT PARTNER Combispace (5F) 1996/05 - /
PEUGEOT EXPERT Box (222) 1995/07 - /
PEUGEOT EXPERT Platform/Chassis (223) 1995/12 - /
PEUGEOT 206 Hatchback (2A/C) 1998/08 - /
PEUGEOT 607 (9D, 9U) 2000/01 - /
PEUGEOT 206 CC (2D) 2000/09 - /
PEUGEOT 307 (3A/C) 2000/08 - /
PEUGEOT 307 SW (3H) 2002/03 - /
PEUGEOT BOXER Bus (244, Z_) 2001/12 - /
PEUGEOT BOXER Box (244) 2001/12 - /
PEUGEOT 807 (E) 2002/06 - /
PEUGEOT 206 SW (2E/K) 2002/07 - /
PEUGEOT BOXER Platform/Chassis (244) 2001/12 - /
PEUGEOT 307 CC (3B) 2003/10 - /
PEUGEOT 407 (6D_) 2004/05 - /
PEUGEOT 307 Break (3E) 2002/03 - /
PEUGEOT 407 SW (6E_) 2004/05 - /
PEUGEOT 1007 (KM_) 2005/04 - /
PEUGEOT 107 2005/06 - /
PEUGEOT 407 Coupe (6C_) 2005/10 - /
PEUGEOT 207 (WA_, WC_) 2006/02 - /
PEUGEOT 206 Saloon 2007/03 - /
PEUGEOT 207 CC (WD_) 2007/02 - /
PEUGEOT EXPERT Tepee (VF3V_) 2007/01 - /
PEUGEOT EXPERT Box (VF3A_, VF3U_, VF3X_) 2007/01 - /
PEUGEOT EXPERT Platform/Chassis 2007/01 - /
PEUGEOT 308 (4A_, 4C_) 2007/09 - /
PEUGEOT 207 SW (WK_) 2007/02 - /
PEUGEOT PARTNER Tepee 2008/04 - /
PEUGEOT PARTNER Box 2008/04 - /
PEUGEOT 308 SW 2007/09 - /
PEUGEOT 308 CC 2009/04 - /
PEUGEOT 3008 2009/06 - /
PEUGEOT 5008 2009/06 - /
PEUGEOT 207 Van 2007/04 - /
PEUGEOT 206+ (T3E) 2009/01 - /
PEUGEOT PARTNER Platform/Chassis 2009/01 - /
PEUGEOT 206 Van 1999/04 - /
