A-Circuit
With Webbed Terminals
Voltage Set Point 14.2V
D22

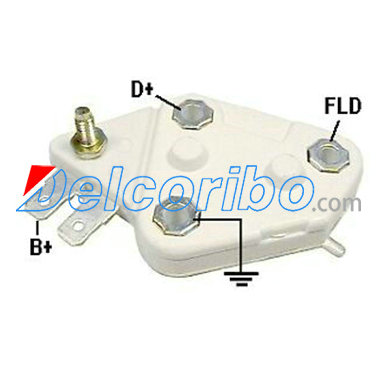

Regulator
12 Volt, A-Circuit, 14.5 Vset
Delco 20SI, 21SI, 22SI, 26SI, 27SI/Type 200, 30SI, 33SI, 34SI, 35SI, 36SI Series IR/EF Alternators
Notes - 1-wire system, w/ webbed terminals, w/ stud. Web can be cut to reset voltage., For heavy duty version use D33-145
Replaces - Caterpillar 9L6774, Delco 1116360, 1116390, 1116433, 1116435, 1116442, 13001740, 1876388, 9343233, D686, D687, D690, Ford F3HS-10316-A, F3HZ-10316-A, F3HS10316A, F3HZ10316A, GR809, Original Reference Number 433, 4330E30, 4334C18, 4337C20, 4339A14, 4339C24, 4339E07, 435, 4358H03, 442, 1116407
ALANKO 700140
PowerMax 81111415, 81114611
WAIglobal D33HS, D102HD, D102HD-1 D102HD1, D21, D22, D22AC-1 D22AC1, D27, D33-1 D331, D33QS
WAIglobal D102HD, D33
AINDE D-680 D680
AS-PL ARE1034
DELCO REMY 1116435, 1116433
ERA 215093
MESSMER 215093
AIRTEX / WELLS 1V1343
CASCO CRE60600GS
SANDO SRE60600.1 SRE606001
FORD
F600 5.9L L6 DIESEL Turbocharged 1993
6.6L L6 DIESEL Turbocharged 1993
7.0L V8 1993
F700 5.9L L6 DIESEL Turbocharged 1993
6.6L L6 DIESEL Turbocharged 1993
7.0L V8 1993
F800 5.9L L6 DIESEL Turbocharged 1993
7.8L L6 DIESEL Turbocharged 1993
8.3L L6 DIESEL Turbocharged 1993 1994 1995
