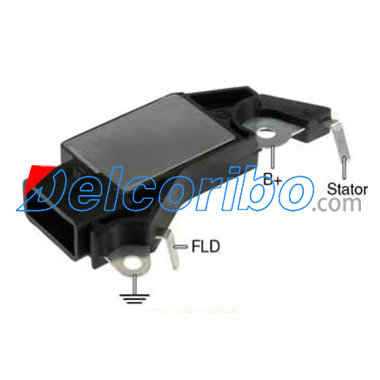

Delco 1116408, 1116428, 19009755 for BUICK Voltage Regulator

B-Circuit
P-L-F-S
Voltage Set Point 14.7V

131904
D408XHD
(Ref# 35-117)
Regulator
12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC
For: Delco CS130, CS144 Series IR/EF Alternators
Used On: (1992-86) Buick, Cadillac, Chevrolet, GMC, Oldsmobile, Pontiac
Replaces: Delco 1116408, 1116428, 19009755, D675, D699, Delco Electronics 16089649, DE108, DE128, Original Reference Number 108, 128, 408, 428
Servicing:CS130, CS144, 10479843, 10480011, 10480033, 1101124, 1101146, 1101158, 1101184, 1101325, 1101326, 1101329, 1101331
(regulator stamped: 108, 128, 408, 428)
Unit Nos: Delco 1101146, 1101158, 1101200, 1101216, 1101221, 1101222, 1101325, 1101326, 1101329, 1101331, 1101590, 1101844, 1105612, 1105614, 1105615, 1105616, 1105625, 1105626, 1105641, 1105644, 1105646, 1105657, 1105659, 1105660, 1105662, 1105663, 1105664, 1105665, 1105666, 1105667, 1105668, 1105669, 1105670, 1105671, 1105672, 1105678, 1105684, 1105685, 1105689, 1105695, 10479843, 10480011, 10480012, 10480033, 10480034, 10481034
Lester Nos: 7801, 7803, 7804, 7805, 7806, 7807, 7808, 7812, 7813, 7820, 7872, 7985, 8134, 8136
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life

WAIglobal D408XHD, D699
AIRTEX / WELLS 1V1060
ALANKO 700030
AS-PL ARE1007
CASCO CRE60105AS
ERA 215103
HITACHI 130011
MESSMER 215103
PowerMax 1111245, 81111245
SANDO SRE60105.0 SRE601050
STANDARD VR431

BUICK
SKYLARK 2.3L 138cid L4 1990
2.3L L4 DOHC 1991
2.5L 151cid L4 1990
2.5L L4 1991
3.3L 204cid V6 1990
3.3L V6 1991
CENTURY 2.5L 151cid L4 1990
2.5L L4 1991
3.1L 189cid V6 1990
3.1L V6 1991
3.3L 204cid V6 1990
3.3L V6 1991
REGAL 3.1L 189cid V6 1990
3.1L V6 1991
3.8L 231cid V6 1990
3.8L V6 1991
ELECTRA 3.8L 231cid V6 1990
LESABRE 3.8L 231cid V6 1990
3.8L V6 1991
5.0L 307cid V8 1990
REATTA 3.8L 231cid V6 1990
3.8L V6 1991
RIVIERA 3.8L 231cid V6 1990
3.8L V6 1991
PARK AVENUE 3.8L V6 1991
3.8L V6 Supercharged 1991
ROADMASTER 5.0L V8 1991
5.7L V8 1992
OLDSMOBILE CUTLASS CIERA 2.2L L4 1993
2.5L 151cid L4 1990
2.5L L4 1992
3.3L 204cid V6 1990
3.3L V6 1991
CUTLASS SUPREME 2.3L 138cid L4 1990
3.1L 189cid V6 1990
3.1L V6 1992
3.4L V6 1992
CUTLASS CALAIS 2.3L 140cid L4 1990
2.5L 151cid L4 1990
3.3L 204cid V6 1990
ACHIEVA 2.3L L4 DOHC 1992
2.3L L4 SOHC 1992
3.3L V6 1992
CUTLASS CRUISER 2.5L 151cid L4 1990
2.5L L4 1991
3.3L 204cid V6 1990
98 3.8L 231cid V6 1990
3.8L V6 1992
3.8L V6 Supercharged 1992
DELTA 88 3.8L 231cid V6 1990
TORONADO 3.8L 231cid V6 1990
3.8L V6 1991
88 3.8L V6 1992
CUSTOM CRUISER 5.0L 307cid V8 1990
5.0L V8 1992 5.7L V8 1992
