232413
D446XHD
(Ref# 35-136)

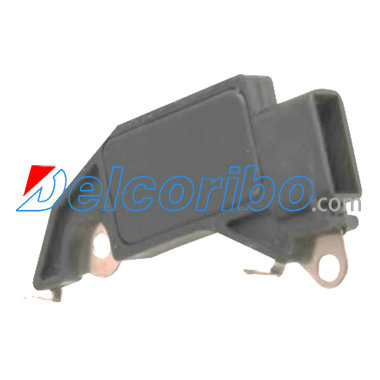

Regulator
12 Volt, B-Circuit, P-L-I-S Terminals, 14.8 Vset, 10 sec. LRC
For: Delco CS144 Series IR/EF Alternators
Used On: (1995-94) Buick, Oldsmobile, Pontiac
Replaces: Delco 1116446, 19009731, D602A, Delco Electronics 16219851, DE146, Original Reference Number 146, 446
Servicing:CS144, 10480135, 10480171
(regulator stamped: 446)
Unit Nos: Delco 10480135, 10480171
Lester Nos: 8192, 8193
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
PowerMax 81112510
WAIglobal D446XHD
ALANKO 700046
MAGNETI MARELLI 940016041500
STANDARD VR531
BUICK
CENTURY 2.2L L4 1995
3.1L V6 1995
SKYLARK 2.3L L4 1995
3.1L V6 1995
REGAL 3.1L V6 1995
3.8L V6 1995
LESABRE 3.8L V6 1995
PARK AVENUE 3.8L V6 1994
3.8L V6 Supercharged 1994
RIVIERA 3.8L V6 1995
3.8L V6 Supercharged 1995
ROADMASTER 5.7L V8 1995
OLDSMOBILE 88 3.8L V6 1995
3.8L V6 Supercharged 1995
98 3.8L V6 1995
3.8L V6 Supercharged 1995
PONTIAC BONNEVILLE 3.8L V6 1994
3.8L V6 Supercharged 1994 1995
