B-Circuit
P-L-I-S
Voltage Set Point 14.7V
135547
D702XHD
(Ref# 35-132)

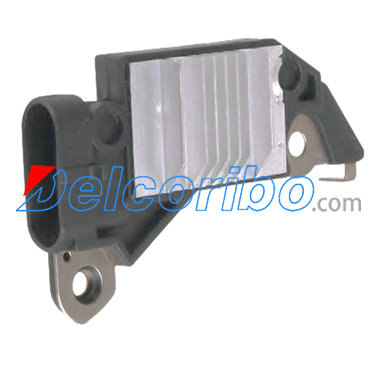

Regulator
12 Volt, B-Circuit, P-L-I-S Terminals, 14.8 Vset, 2.5 sec. LRC
For: Delco CS121D, CS130D Series IR/IF Alternators
Used On: (2002-93) Buick, Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile, Pontiac, Saturn
Replaces: Delco 19009702, 19009710, 19009719, 702, 9719, Delco ASVR 19009719, Delco Electronics 16228299, DE102, 10463407 , 10463443, 10463654
Servicing:CS130D, 10463651, 10463940, 10479214, 10479991, 10480017, 10480072, 10480167, 10480168, 10480187, 10480189, 10480190
stamped: 102, 702)
Unit Nos: Delco 10470119, 10479981, 10479984, 10480017, 10480052, 10480071, 10480072, 10480078, 10480119, 10480167, 10480168, 10480187, 10480188, 10480189, 10480190, 10480195, 10480196, 10480198, 10480233, 10480235, 10480236, 10480237, 10480238, 10480263, 10480308, 10480342, 10480343, 15757624, 21012992, 21022992, 21023969, 21024727, 21024736
Lester Nos: 8155, 8156, 8160, 8206, 8208, 8227, 8232, 8242
Note: With temperature compensation.
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
MAGNETI MARELLI 940016070700
WAIglobal D702SE, D702XHD
ALANKO 700043
AS-PL ARE1004
CASCO CRE60108AS
ERA 215115
MESSMER 215115
PowerMax 81112612
SANDO SRE60108.0 SRE601080
GM Vehices
CHEVROLET BLAZER S10 1993/10 - 2005/09
CHEVROLET ASTRO Box 1994/10 - 2005/05
RENAULT CLIO I (B/C57_, 5/357_) 1990/05 - 1998/09
RENAULT TWINGO I (C06_) 1993/03 - /
RENAULT KANGOO (KC0/1_) 1997/08 - /
RENAULT CLIO II (BB0/1/2_, CB0/1/2_) 1998/09 - /
RENAULT KANGOO Express (FC0/1_) 1997/08 - /
RENAULT TWINGO I Box (S06_) 1993/03 - /
RENAULT CLIO II Box (SB0/1/2_) 1998/09 - /
