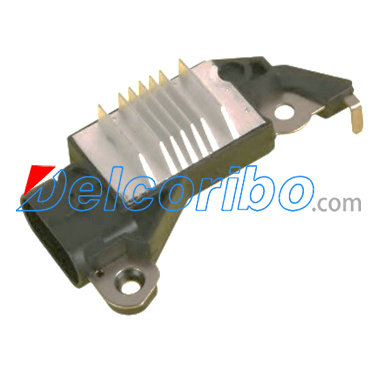

Delco 19009706, 19009725 Voltage Regulator
VRT1190 Voltage Regulators
231185
D706XHD
(Ref# 35-138)
Regulator
12 Volt, B-Circuit, P-L-I-S Terminals, 14.2 Vset, 2.5 sec. LRC
For: Delco CS130D Series IR/IF Alternators
Used On: (1999-96) Chevrolet, GMC P Series Truck
Replaces: Delco 19009706, 19009725 , MOBIETRON VR-D705H (regulator stamped: 706, 19009725 (regulator stamped:725)
Unit Nos: Delco 10480170, CS130D, 10480071, 10480119, 10480237, 10480353
Lester Nos: 8216
Note: Without temperature compensation
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
D706XHD
(Ref# 35-138)
Regulator
12 Volt, B-Circuit, P-L-I-S Terminals, 14.2 Vset, 2.5 sec. LRC
For: Delco CS130D Series IR/IF Alternators
Used On: (1999-96) Chevrolet, GMC P Series Truck
Replaces: Delco 19009706, 19009725 , MOBIETRON VR-D705H (regulator stamped: 706, 19009725 (regulator stamped:725)
Unit Nos: Delco 10480170, CS130D, 10480071, 10480119, 10480237, 10480353
Lester Nos: 8216
Note: Without temperature compensation
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
WAIglobal D706XHD
ALANKO 700053
CASCO CRE60111AS
ERA 215118
MAGNETI MARELLI 940016070600
MESSMER 215118
PowerMax 81110341
SANDO SRE60111.0 SRE601110
ALANKO 700053
CASCO CRE60111AS
ERA 215118
MAGNETI MARELLI 940016070600
MESSMER 215118
PowerMax 81110341
SANDO SRE60111.0 SRE601110
