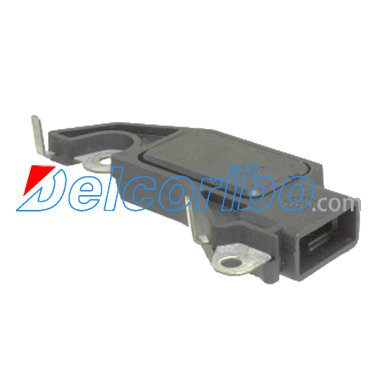

Delco 1116412, 1116434, D603A, D678 Voltage Regulator for Buick

B-Circuit
P-L-F-S
Voltage Set Point 14.7V

131906
D712
(Ref# 35-139)
Regulator
12 Volt, B-Circuit, P-L-F-S Terminals, 14.6 Vset*, 10 sec. LRC
For: Delco CS144 Series IR/EF Alternators
Used On: (1999-87) Buick, Cadillac, Oldsmobile
Replaces: Delco 1116412, 1116434, D603A, D678, D684, Delco ASVR 19009712, Delco Electronics 16130929, DE112, Original Reference Number 112, 434
Servicing:10479806, 10479920, 10480018, 10480019, 10480120, 10480177, 10480186, 10480204, 1101133, 1101259, 1101270, 1101295
(regulator stamped: 412, 434, 712)
Unit Nos: Delco 1101133, 1101270, 1101295, 1101330, 1101574, 1101591, 1101850, 10480018, 10480019, 10480120, 10480177, 10480186, 10480204, 10480276, 10480279, 10480282
Lester Nos: 7863, 8113, 8174, 8183, 8188, 8191, 8194
Note: Remote temperature compensation. Used on applications
w/ instrument cluster gauges.
Caution: *14.6 Vset thru thermistor at 25° C.
Must use 1800 Ohm resistor when testing. Resistor simulates the
thermistor in the vehicle.
Features:
Soft start
Short-circuit protection

AIRTEX / WELLS 1V1059
ALANKO 700032
AS-PL ARE1013
MAGNETI MARELLI 940016040900
PowerMax 81115774
STANDARD VR453, VR555
WAIglobal D412, D712

Buick, Cadilac Oldsmobile with
Temperature sense
BUICK
RIVIERA 3.8L V6 1995
3.8L V6 Supercharged 1995
CADILLAC ALLANTE 4.5L 273cid V8 1990
4.5L V8 1991
4.6L V8 1993
DEVILLE 4.5L 273cid V8 1990
ELDORADO 4.5L 273cid V8 1990
FLEETWOOD 4.5L 273cid V8 1990
4.9L V8 1991
SEVILLE 4.5L 273cid V8 1990
BROUGHAM 5.0L 307cid V8 1990
5.7L 350cid V8 1990
OLDSMOBILE AURORA 4.0L V8 1995 1996 1997 1998 1999
