Delco 10483777, 10483778, 10458198,

232664
D198XHD
(Ref# 35-161)

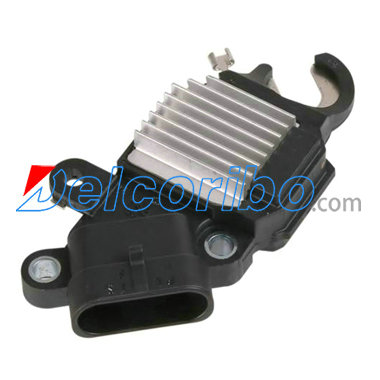

Regulator
12 Volt, B-Circuit, P-L-F-S Terminals, 15.1 Vset, 10 sec. LRC
For: Delco AD230, AD237 Series IR/IF Alternators
Used On: (2005-99) Buick, Oldsmobile, Pontiac
Replaces: Delco 10483777, 10483778, 10458198, 10453673, 10453673 (regulator stamped: 3673, 3777 or regulator
Servicing:AD230, AD237, 10480241, 10480244, 10480303, 10480357
rectifier assy. stamped: 3776, 4190, 4572)
Unit Nos: Delco 10480241, 10480244, 10480303, 10480350, 10480357, 10480411, 10480414, 15744913, 25744163, 25744164, 25744165
Lester Nos: 8244, 8245, 8277, 8278, 8285, 8286
Note: For remote battery applications.
Designed for DR4402, DR4403 series rectifiers w/ screw down collar.
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life

PowerMax 1113857
WAIglobal D198HD, D198XHD
