232665
D200XHD
(Ref# 35-162)

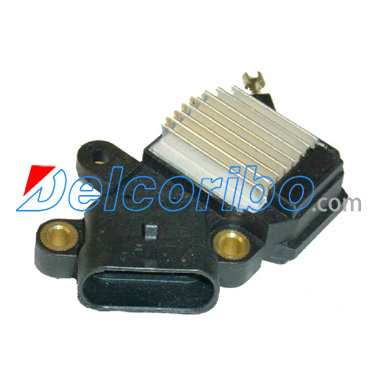

Regulator
12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC
For: Delco AD230, AD237, AD244 Series IR/IF Alternators
Used On: (2005-99) AM General, Buick, Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile, Pontiac, Saab
Replaces: Delco 10483643, 19054622, 19053730, 19053013, 10494747, 10486311, 10468311, 10458201, 10458200, 10458199, 19060319 (regulator stamped: 0319, 19060319 (regulator stamped: 3013, 19060319 (regulator stamped: 3643, 19060319 (regulator stamped: 3730, 19060319 (regulator stamped: 4622, 6311 or regulator
Servicing:AD230, AD244, 10464406, 10480234, 10480326, 10480327, 10480341, 10480388, 15062413
rectifier assy. stamped: 0498, 0821, 3010, 3642, 3729, 3741, 4621, 5071)
Unit Nos: Delco 10311493, 10333165, 10333166, 10346705, 10442782, 10442783, 10480231, 10480234, 10480285, 10480326, 10480327, 10480341, 10480383, 10480388, 10480390, 15062413, 15162839, 15744910, 15750871, 15754097, 15754097A, 15755616, 15766829, 15766830, 15768829, 15768830, 15788630, 25744162
Lester Nos: 8237, 8241, 8247, 8273, 8287, 8288, 8289, 8290, 8291, 8292, 8293
Note: Designed for DR4402, DR4403 series rectifiers w/ screw
down collar.
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
AS-PL ARE1027, ARE1055
PowerMax 81114525
WAIglobal D200HD, D201XHD, D200XHD
