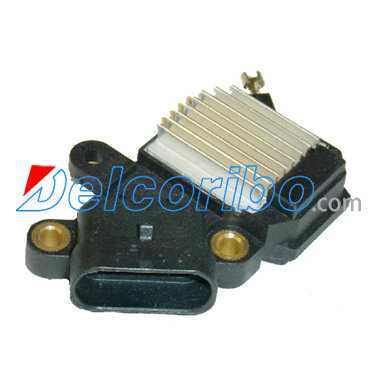

Delco 10494747 Voltage Regulator
VRT1217 Voltage Regulators
D201XHD
Regulator
12 Volt, B-Circuit, P-L-I-S Terminals, 14.8 Vset, 2.5 sec. LRC
For: Delco AD230 Series IR/IF Alternators
Used On: (1999) Chevrolet, GMC
Replaces: Delco 10494747 (regulator stamped: 4747 or regulator
rectifier assy. stamped: 4743)
Unit Nos: Delco 10480229
Lester Nos: 8238
Note: Designed for DR4402, DR4403 series rectifiers w/ screw
down collar.
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
Regulator
12 Volt, B-Circuit, P-L-I-S Terminals, 14.8 Vset, 2.5 sec. LRC
For: Delco AD230 Series IR/IF Alternators
Used On: (1999) Chevrolet, GMC
Replaces: Delco 10494747 (regulator stamped: 4747 or regulator
rectifier assy. stamped: 4743)
Unit Nos: Delco 10480229
Lester Nos: 8238
Note: Designed for DR4402, DR4403 series rectifiers w/ screw
down collar.
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
AS-PL ARE1027
PowerMax 81114525
WAIglobal D200HD, D201XHD
PowerMax 81114525
WAIglobal D200HD, D201XHD
